Speed 90CPM SATRA TM 133 Outsole Belt Flexing Tester For Footwear

Name: Speed 90CPM SATRA TM 133 Outsole Belt Flexing Tester For Footwear
Brand: GESTER
Price: 1 USD

China Speed 90CPM SATRA TM 133 Outsole Belt Flexing Tester For Footwear wholesale

Brand Name : GESTER

Model Number : GT-KB35

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/month

Delivery Time : 10-30days

Packaging Details : wooden packaging

Warranty : 12 Months

Product name : Outsole Belt Flexing Tester

Application : footwear industry

Color : black

Quality : High,good

Advantage : factory direct sale, fast delivery

Contact Now

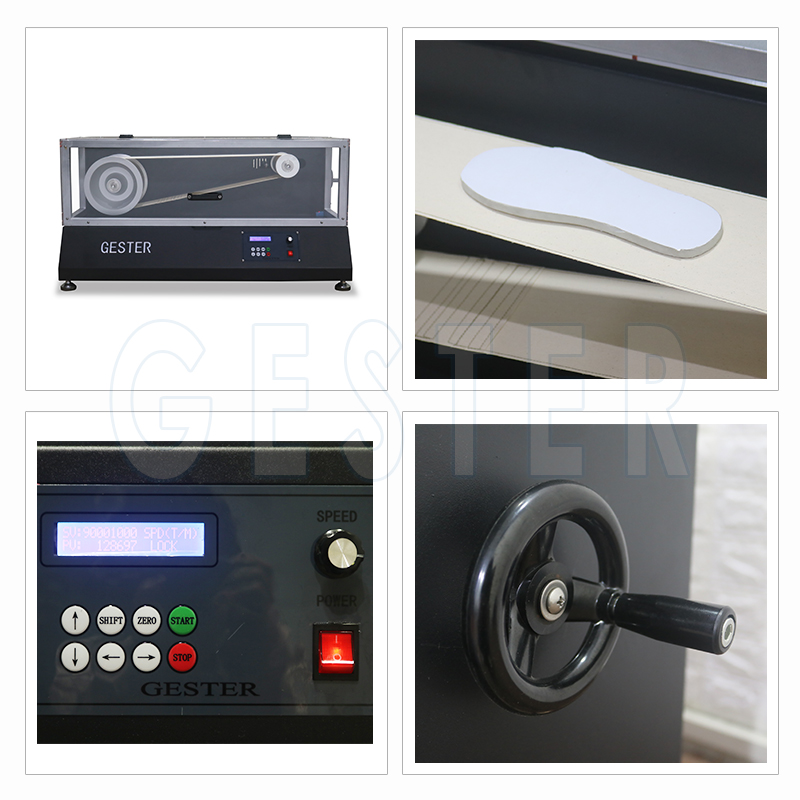

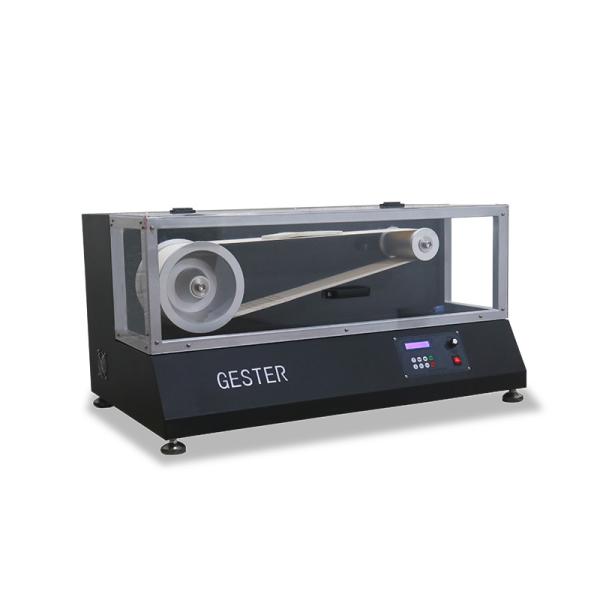

SATRA TM 133 Footwear Outsole Belt Flexing Tester

Product Introduction

Application:

This outsole belt flexing tester is to determine the resistance of a component or material to crack initiation and growth due to repeated flexing.

Standards:
SATRA TM 133

Feature

It tests the specimen by simulating a personal walking in a normal way so as to determine the resistance of the specimen to flex. Users can set the number of tests themselves, and it will stop automatically when the number of tests has been reached. More than one specimen can be tested once in order to enhance work efficiency.

Key Specifications

Model	GT-KB35
Canvas belt size	Length :1930±50mm Width :140±5mm
Driven roller	Diameter: 225 ± 5 mm
Driven roller	Width: 170 ± 20 mm
Free roller 1 for typical sole units test	Centre Diameter : 90.0 ± 0.5 mm
	Ends Diameter : 87 ± 1 mm
	Width: 170 ± 20 mm
Free roller 2 for very flexible sole units test	Centre Diameter : 60.0 ± 0.5 mm
	Ends Diameter : 57 ± 1 mm
	Width: 170 ± 20 mm
Free roller 3 for very rigid sole units	Centre Diameter : 120.0 ± 0.5 mm
	Ends Diameter : 117 ± 1 mm
	Width: 170 ± 20 mm
Belt rotate speed	90 ± 8 CPM
Sampling	MAX.6 pcs
Counter	LCD 0~999,999
Power supply	1∮AC 220V 50/60HZ 3A
Dimensions(W×D×H)	131 cm x 82cm x 69cm
Weight(Approx)	170kg
Standards	SATRA TM 133

Accessories:

Standard accessories	1pc	Spanner
	1pc	Canvas belt
	3pcs	Free roller
	1pc	Drive roller
	1pc	Power line
Option accessories	Optional	Canvas belt (consumptive material)
